Procella Audio

"Finally some Atmos speakers which will fit. Great call on the coaxial, 110 degree dispersion and angled baffle."

Tim McGinnis

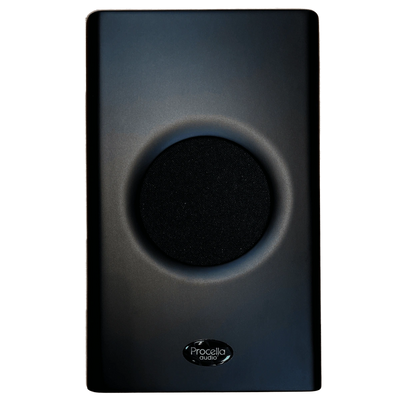

The P1 delivers the full dynamic range experience for the surround and height channels in smaller rooms.

P1 delivers Procella performance with the look and feel of the P5 series, delivers the full dynamic range experience to small and medium rooms with multiple surrounds and height speakers. Like its larger brothers, the loudspeaker sets the standard for output and dynamic range in its size and price class. Its compact cabinet can be oriented either vertically, horizontally or mounted on the ceiling. For ceiling mounting we have create a special bracket. A true high-output loudspeaker, the P1 can be used as a surround, or height channel speaker. You even have a choice of black or white finishes. Match the P1 with either P5 or P6 series as your LCR channels and you get a very affordable immersive sound system!

Specifications:

POWER HANDLING

75W continuous

SENSITIVITY

89 dB 1m / 1W

MAXIMUM SPL

105dB

FREQUENCY RESPONS

-3dB points 80Hz and 20kHz

DISPERSION PATTERN

-6dB circular 110deg

COMPONENTS

5,5" coax with 35mm VC / hf in circular waveguide 4,5L Sealed box 19mm

CONNECTIVITY

Gold plated large diameter binding posts

WALL MOUNT

speaker mounts 127x70mm M4, Keyholes provided for both vertical and horizontal mounting

FINISH

Black semi-matte painted finish, White semi-matte painted finish

DIMENSIONS AND WEIGHT

210 x 340 x 100/120, 7deg angle

ASSEMBLY

Sweden 100% QC testing

5 Year Procella Warranty | Colour: Available in both Black or White.

CONTACT US FOR A PRICE - Tel: 07947 647 414 | E-mail: sales@ultimatehomecinema.com

“The new P5 really is an extraordinary speaker! It is almost unbelievable when you are listening to P5 to imagine the size of them, because they sound so much bigger. The new P15A is a perfect companion since it sounds very good and is very easy to install in most rooms.”
MARCUS, The Rock Hemmabio.

The P5 delivers the full dynamic range experience to smaller rooms and rooms with multiple surrounds and height speakers.

Delivering Procella performance with a new look and feel, the P5 delivers the full dynamic range experience to smaller rooms and rooms with multiple surrounds and height speakers. Like its larger brothers, the loudspeaker sets the standard for output and dynamic range in its size and price class. Its compact cabinet can be oriented either vertically or horizontally, even mounted on the ceiling, thanks to its 80 degree circular waveguide and 1” pro compression driver. A true high-output loudspeaker, the P5 gives can be used as a main, surround, or height channel speaker. You even have a choice of black or white finishes, both with a matching removable grille that is held in place magnetically. Match the P5 with the P15A subwoofer for Procella at its most affordable!

Specifications:

POWER HANDLING

Continuous 75 Watt, Peak 250 Watt

SENSITIVITY

1m/1W 91dB

MAXIMUM SPL

free-standing 107dB continuous 113dB peak, in wall 113dB continuous 119dB peak

FREQUENCY RESPONS

-3dB points 90Hz and 20kHz

DISPERSION PATTERN

-6dB Constant directivity, 80° circular from 2.5kHz

CROSSOVER

Asymmetrical and phase aligned 2.2kHz, BSC

CONNECTIVITY

Gold plated large diameter binding posts

WALL MOUNT

Inserts for VESA 100 bracket, Keyholes provided for both vertical and horizontal mounting

FINISH

Black semi-matte painted finish, White semi-matte painted finish

DIMENSIONS AND WEIGHT

HxWxD 12” x 7.5” x 6.7” / 304 x 190 x 170 mm, 10.6 Lbs / 4.8 Kg

SHIPPING CARTON

HxWxD 15.35" x 11.4" x 10.25" / 390 x 290 x 260 mm / 12.3 Lbs / 5.6 Kg

ASSEMBLY

Sweden 100% QC testing

5 Year Procella Warranty | Colour: Available in both Black or White.

CONTACT US FOR A PRICE - Tel: 07947 647 414 | E-mail: sales@ultimatehomecinema.com

“The P5V will be ideal for the new 3D audio formats from Auro and Dolby. It’s a little disorientating to have such a big, dynamic presentation from such a compact box (P5V). It sounds almost identical to the larger P6, especially in smaller rooms.”
BARRY SHELDRICK, Pulse Marketing.

Slim and softly sculptured, the P5V is the Procella speaker to showcase next to flat-panel displays.

Expanding the highly successful P5 family, the P5V is the slim and sexy wall-mount option. Its softly sculptured enclosure is only 4.1 inches deep, and whether it’s oriented tall or wide, it looks sleekly at home next to both flat panels and projection screens. Available in both black and white semi matte finishes, there’s no need to hide this speaker behind a fabric wall. Using a 1 inch pro audio compression driver for high frequencies for high efficiency and a wider dynamic range than hi-fi speakers using dome tweeters, the P5V is capable of peaks up to 119 dB. Its 80 degree circular constant directivity waveguide produces wide coverage throughout the room. This makes the P5V equally proficient as a main, surround, or height channel speaker. You can count on the P5V to deliver consistently good sound for all listeners regardless of where the speaker is located and how it is oriented. Multiple mounting options are available, with back baffle threaded inserts for a VESA 100 and keyhole mounts for both vertical and horizontal orientation.

Specifications:

IMPEDANCE

8 Ohms nominal

POWER HANDLING

Continuous 75 Watt, Peak 250 Watt

SENSITIVITY

1m/1W 91dB

MAXIMUM SPL

free-standing 107dB continuous 113dB peak, in wall 113dB continuous 119dB peak

FREQUENCY RESPONS

-3dB points 90Hz and 20kHz

DISPERSION PATTERN

-6dB Constant directivity, 80° circular from 2.5kHz

CROSSOVER

Asymmetrical and phase aligned 2.2kHz, BSC

CONNECTIVITY

Gold plated large diameter binding posts

WALL MOUNT

Inserts for VESA 100 bracket, Keyholes provided for both vertical and horizontal mounting

FINISH

Black semi-matte painted finish, MDF construction, removable cloth grille, White semi-matte painted finish

DIMENSIONS AND WEIGHT

HxWxD 18.5" x 7.5" x 4.5" / 470 x 190 x 115 mm, 11Lbs / 5.0Kg

SHIPPING CARTON

HxWxD 23.6” x 11.6” x 7.9″ / 600 x 295 x 200 mm, 13.2 Lbs / 6.0Kg

ASSEMBLY

Sweden 100% QC testing

5 Year Procella Warranty | Colour: Available in both Black or White.

CONTACT US FOR A PRICE - Tel: 07947 647 414 | E-mail: sales@ultimatehomecinema.com

“We have already chosen the speakers (for our demo/test room): it must be the P6 / P15 from Swedish Procella. These compact but potent speakers are not only one of the most powerful theater systems we’ve heard, but they are also extremely revealing and is therefore a useful tool when we test home cinema amplifiers and other electronics. These compact but potent P6 speakers are one of the most powerful theater systems we’ve heard.“

LJUD & BILD magazine.

Compact and elegant, the P6 brings Procella reference quality audio and a very wide dynamic range in a slim-profile cabinet (only 5.3” deep) that makes for easy integration with flat-screen televisions, projection screens, and surround speaker environments.

Specifications:

IMPEDANCE

8 Ohms nominal, Above 10 Ohm in working range, phase angles less than 30 degrees

POWER HANDLING

Continuous 100 Watt, Peak 300 Watt

SENSITIVITY

1m/1w 90dB

MAXIMUM SPL

in baffle wall 116dB continuous, 122dB peak

FREQUENCY RESPONS

-3dB points 70Hz and 20kHz

DISPERSION PATTERN

-6dB Constant directivity; 90°H x 60°V from 2.0kHz

CROSSOVER

4th Order Linkwitz-Reilly 1.9kHz, BSC

COMPONENTS

High Frequency 1” driver with a Polyester diaphragm on a Procella designed elliptical constant directivity wave guide, Midrange 6.5” driver with 40mm voice coil in 9 litre sealed box

CONNECTIVITY

Gold plated large diameter binding posts

CONSTRUCTION

Void free MDF internally cross braced Studio vinyl finish as standard

DIMENSIONS AND WEIGHT

HxWxD 11.4” x 18.5” x 4.9” / 290 x 470 x 125 mm / 20.1 Lbs / 9.1 Kg

SHIPPING CARTON

HxWxD 9.5" x 22.8" x 15" / 240 x 580 x 380 mm / 23.1 Lbs / 10.5Kg

WALL MOUNT

Wall mount bracket included

ASSEMBLY

Sweden 100% QC testing

5 Year Procella Warranty | Colour: Available only in Black.

CONTACT US FOR A PRICE - Tel: 07947 647 414 | E-mail: sales@ultimatehomecinema.com


“With seven identical satellites and a brutally powerful subwoofer with dual 15-inch drivers crossed over at 80 Hz, the P6 / P15 system is a tough reference to compare other equipment with and against.”
LJUD & BILD magazine.

The P6V fits elegantly to the side of projection screens or flat-panel displays, and it also can be made to easily disappear into custom-built columns when used as a surround speaker.

The P6 in a tall format, with identical performance, for installations where the original version is too wide. Slim and shallow at 18.5"/470mm high and only 4.9"/125mm deep (11.4"/290mm wide), the P6V fits elegantly to the side of projection screens or flat-panel displays, and it also can be made to easily disappear into custom-built columns when used as a surround speaker. Like the standard P6, the P6V combines a 6.5” high-efficiency woofer driver with a very high quality pro audio 1” high-frequency compression driver and Procella’s constant directivity waveguide to produce uncompressed dynamics at high output levels with lifelike clarity for music and movies. Identical Voices TM timbre-matched to all other Procella models for seamless integration in multichannel systems.

Specifications:

IMPEDANCE

8 Ohms nominal, Above 10 Ohm in working range, phase angles less than 30 degrees

POWER HANDLING

Continuous 100 Watt, Peak 300 Watt

SENSITIVITY

1m/1w 90dB

FREQUENCY RESPONS

-3dB points 70Hz and 20kHz

DISPERSION PATTERN

-6dB Constant directivity; 90°H x 60°V from 2.0kHz

CROSSOVER

4th Order Linkwitz-Reilly 1.9kHz, BSC

COMPONENTS

High Frequency 1” driver with a Polyester diaphragm on a Procella designed elliptical constant directivity wave guide, Midrange 6.5” driver with 40mm voice coil in 9 litre sealed box

CONNECTIVITY

Gold plated large diameter binding posts

CONSTRUCTION

Void free MDF internally cross braced Studio vinyl finish as standard

DIMENSIONS AND WEIGHT

HxWxD 18.5” x 11.4” x 4.9” / 470 x 290 x 125 mm / 20.1 Lbs 9.1Kg

SHIPPING CARTON

HxWxD 9.5" x 22.8" x 15" / 240 x 580 x 380 mm / 22.9 Lbs 10.4 Kg

WALL MOUNT

Inserts for VESA 100 bracket, Wall mount bracket included

ASSEMBLY

Sweden 100% QC testing

5 Year Procella Warranty | Colour: Available only in Black.

CONTACT US FOR A PRICE - Tel: 07947 647 414 | E-mail: sales@ultimatehomecinema.com
